Create actions that call API endpoints

Workbooks support actions that call API endpoints and allow you to display and use the response from those API calls in your workbook.

This document explains how to create actions that call an API endpoint. For more information about actions in Sigma, see Intro to actions.

Considerations

• Third-party APIs come with their own access and usage limitations that are not controlled by Sigma.

System and user requirements

The ability to create and manage API actions requires the following:

• You must be assigned an account type with the Full explore or Create, edit, and publish workbook permissions enabled, and the Create API actions permission enabled.
• You must be the workbook owner or be granted Can explore¹ or Can edit workbook access.
• You must have the required authorization credentials to use the third-party API, and must be granted permission to use those credentials in Sigma. See Add a new API credential to Sigma and Grant access to API credentials and connectors.
• You must have one or more connectors in your Sigma organization to use in the Call API action, and must be granted permission to use them. See Create a new API connector in Sigma and Grant access to API credentials and connectors.

The ability to trigger API actions requires the following:

• You must be assigned an account type with the Trigger API actions permission enabled.
• You must be granted access to the API connector.

1If you’re granted Can explore workbook access, you can configure actions in custom, saved, and shared views. Actions configured in views or saved views do not apply to the workbook’s published version.

Call an API from an action

Create an action that calls an API:

• Action	Select Call API
  API	Select an API connector.
  Map with	(Optional) If your connector has any dynamic parameters or request body contents, configure them with either Static values, a Control value, or a value from a Formula. If the element you're configuring the action on is a table element, or is in a repeated container or single row container, you can also select a Column from the underlying data.

Configure a text area control to display the response of an API action

You can use an action variable to display the response data of a Call API action in your workbook.

📘

Each Call API action creates three different action variables, one for each of the response data, status, and headers.

In a workbook with a Call API action configured:

1. In the Add element bar, select Controls, then select Text area.
2. In the Action sequence where the Call API action is configured, click Add action.
3. In the action modal, configure the fields to define the response:

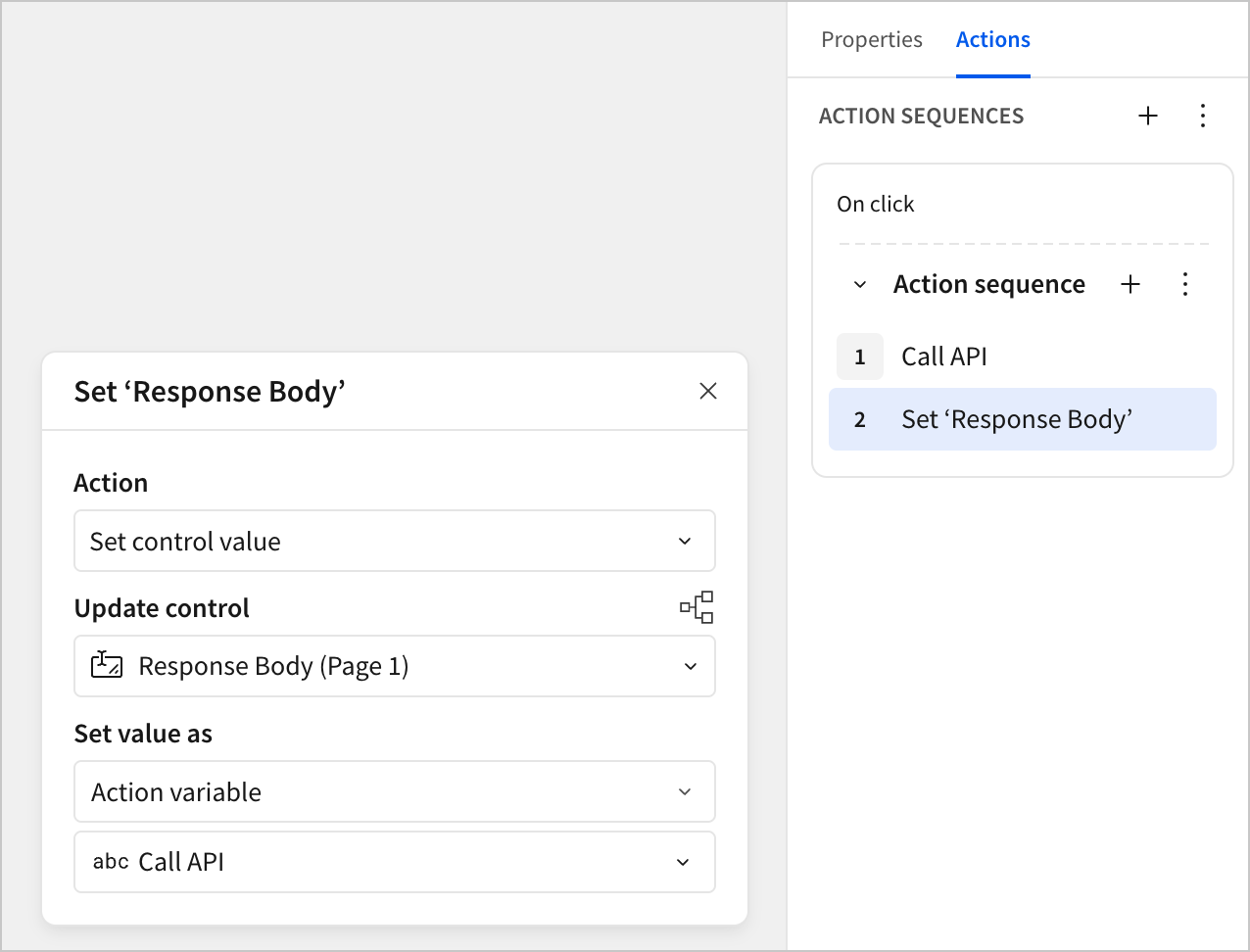

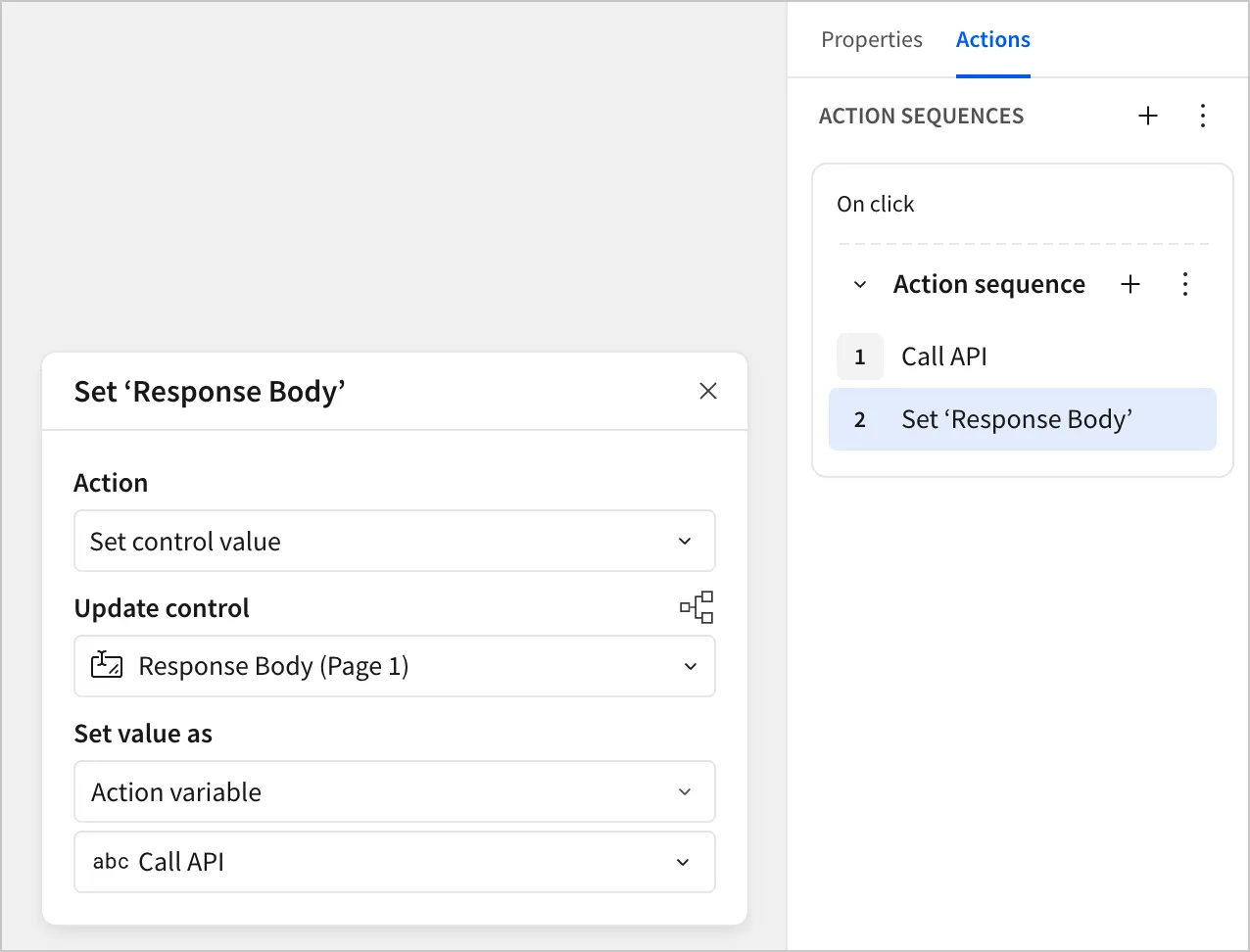

• Action	Select Set control value
  Update control	Select the text area control from step one.
  Set value as	Select Action variable, and then select the action variable for response data that results from the Call API action.

4. Trigger the action sequence. The response body populates in the text area control.

📘

In this example and others, the response body is displayed using a text area control. Though other controls can be used to display outputs from a Call API action, the data type of the control must match the data type of the action variable. For the response data, the data type is text, which matches that of the text area control.

Examples

For step-by-step tutorials on how to create actions that call API endpoints, see the following examples:

• Tutorial: Configure API credentials, connectors, and actions for the Sigma REST API
• Tutorial: Configure API credentials, connectors, and actions for the NYC Open Data API
