Create a secure embed

Secure embedding allows you to securely integrate Sigma content (an entire workbook, specific page, or individual chart or table element) into another application without requiring users to authenticate through Sigma. The secure embed inherits the host application's user security configurations at runtime to implement the appropriate level of control over access to Sigma content.

🚩

Secure embedding is a premium feature.

This document provides an overview of the workflows required to create a secure embed.

Requirements

You must be assigned the Admin account type and have been granted embedding credentials by an admin. See Generate embed client credentials for more information.

📘

Depending on your access to the host application, you may require assistance from your engineering team when completing the server-side requirements.

About secure embedding

This document provides an overview of the workflow required to create secure embed URLs signed with JSON Web Tokens (JWTs):

  • JWTs are compact, URL-safe tokens that can be digitally signed, ensuring that the data they contain is tamper-proof.
  • JWT URLs can authenticate internal Sigma users to access embedded content with the same email address they use for their Sigma account.
  • JWT URLs enable you to disable automatic embed user account provisioning for non-Sigma users, effectively restricting your embed content to the users you have explicitly provisioned in Sigma or your IdP. Allow you to choose how to manage your users and team access.

Authentication flow

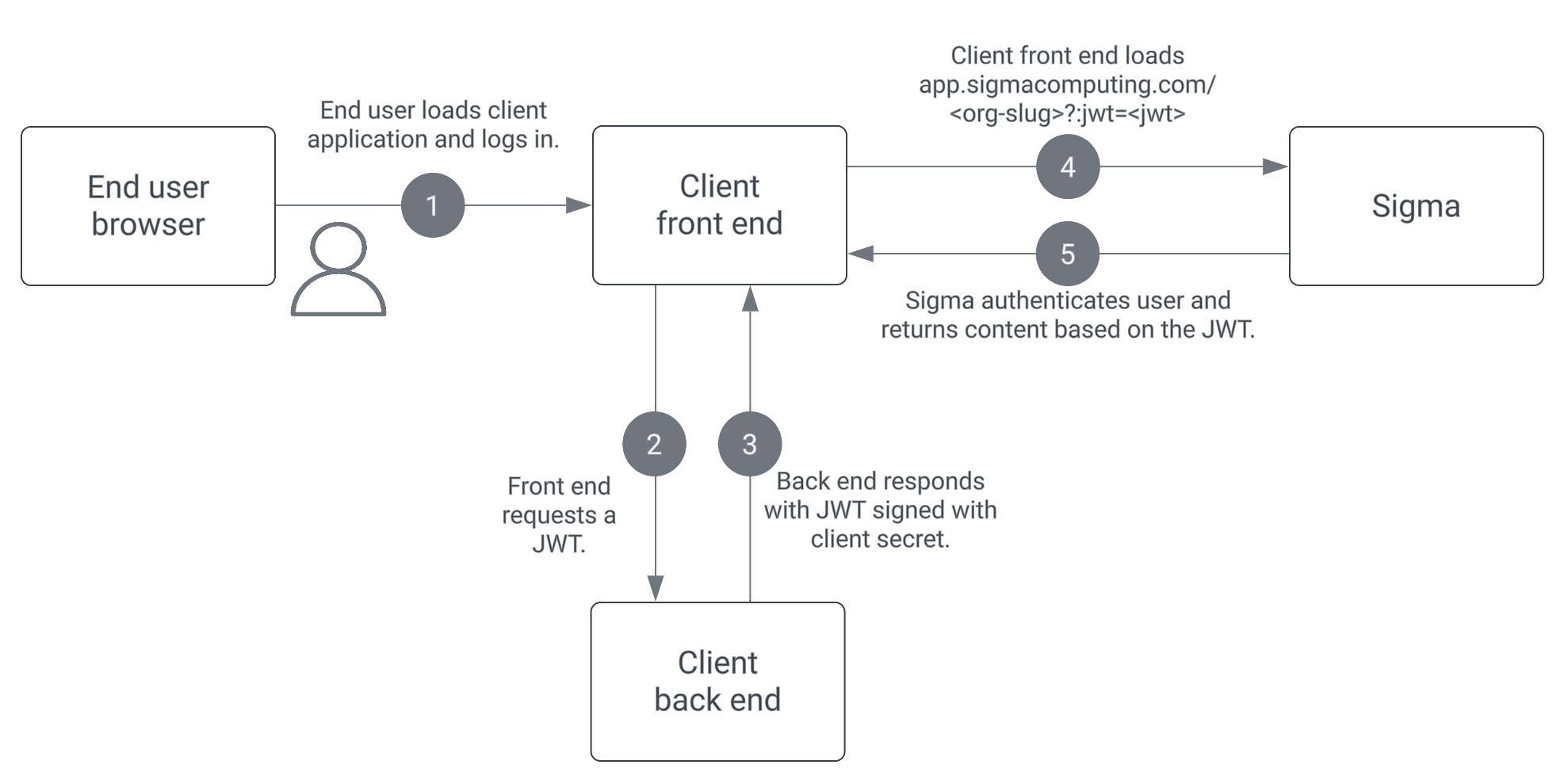

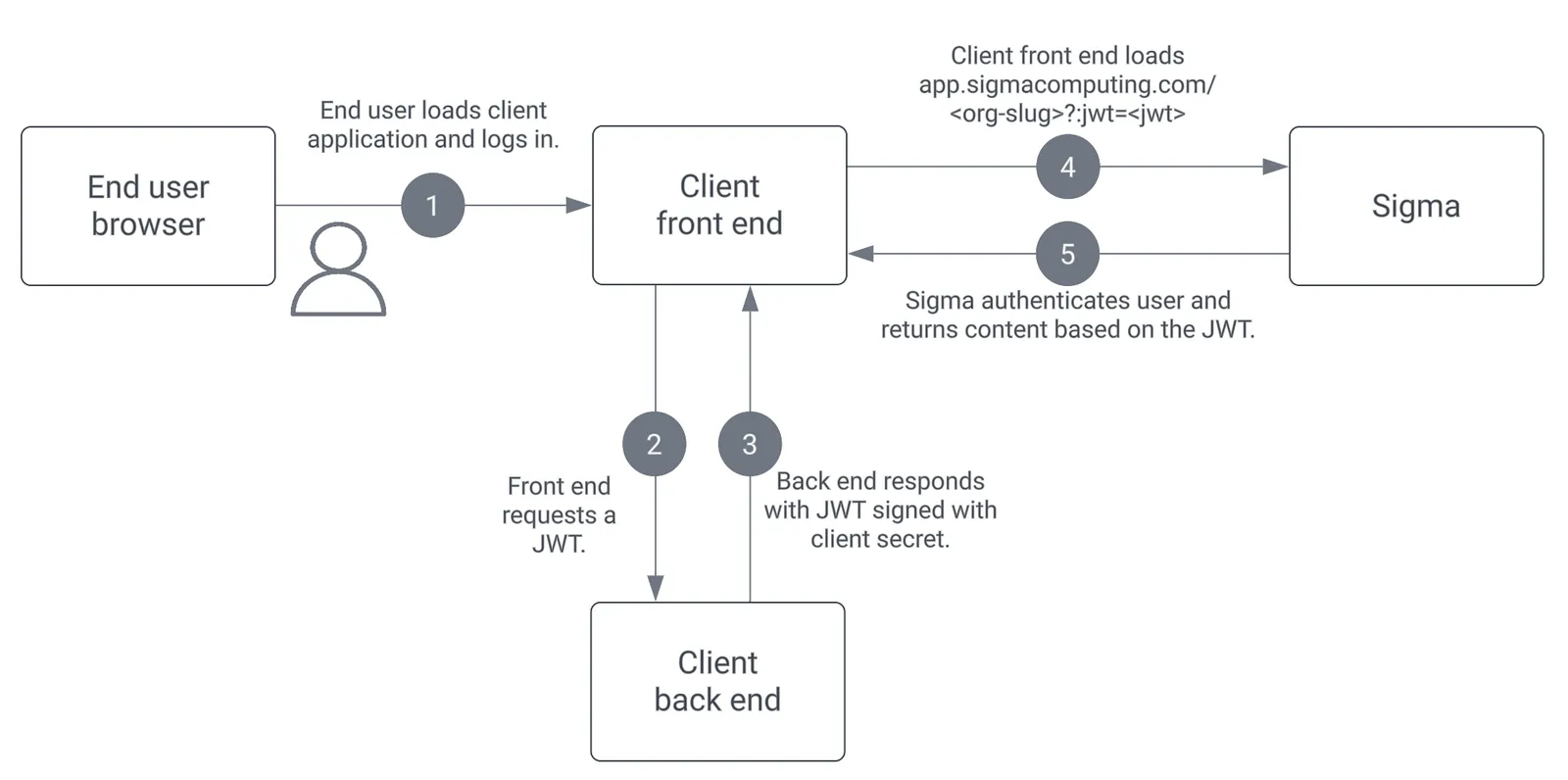

This diagram displays how access is secured between the end user browser, the client front end, client back end, and Sigma.

This diagram shows the interaction between the end user browser, the client front end, client back end, and Sigma. Step 1, the end user loads the client application and logs in. Step 2, the front end requests a JWT. Step 3, the back end responds with JWT signed with client secret. Step 4, client front end loads app.sigmacomputing.com/<org-slug>?:jwt=<jwt>. Step 5, Sigma authenticates user and returns content based on the JWT.


📘

When a JWT is issued, the jti claim, a unique identifier for the token, is stored server-side. When the JWT is used to access an embedded Sigma workbook, the server checks whether the value passed for the jti has already been seen. If it has, the token is rejected as a replay attempt, ensuring it can't be reused.

Workflow to create a secure embed

Follow these steps to access the documentation for each step:

  1. Generate embed client credentials. The client credentials (a unique client ID and client secret) are required to sign the JWT for the embedded Sigma content in the host application.

  2. Manage access to your embedded content. Determine how to manage user access to your embed using teams and more.

  3. Build a URL by copying the published link that points to the Sigma content you want to embed.

  4. Test the embed in Sigma’s embed sandbox. Configure and test optional interface, security, and user attribute claims.

  5. Create an embed API to interact with Sigma's services. This API manages requests and responses between the host application and Sigma. See Example embed API via JWT secure method for more details.

  6. Implement your API to render the Sigma content in the host application interface.

📘

For details about creating a secure embed URL signed by embed credentials, see Secure embedding with signed URLs.
