Create and configure tabbed containers (Beta)

🚩

This documentation describes a public beta feature and is under construction. This documentation should not be considered part of our published documentation until this notice, and the corresponding Beta flag on the feature in the Sigma service, are removed. As with any beta feature, the feature discussed below is subject to quick, iterative changes. The latest experience in the Sigma service might differ from the contents of this document.

Beta features are subject to the Beta features disclaimer.

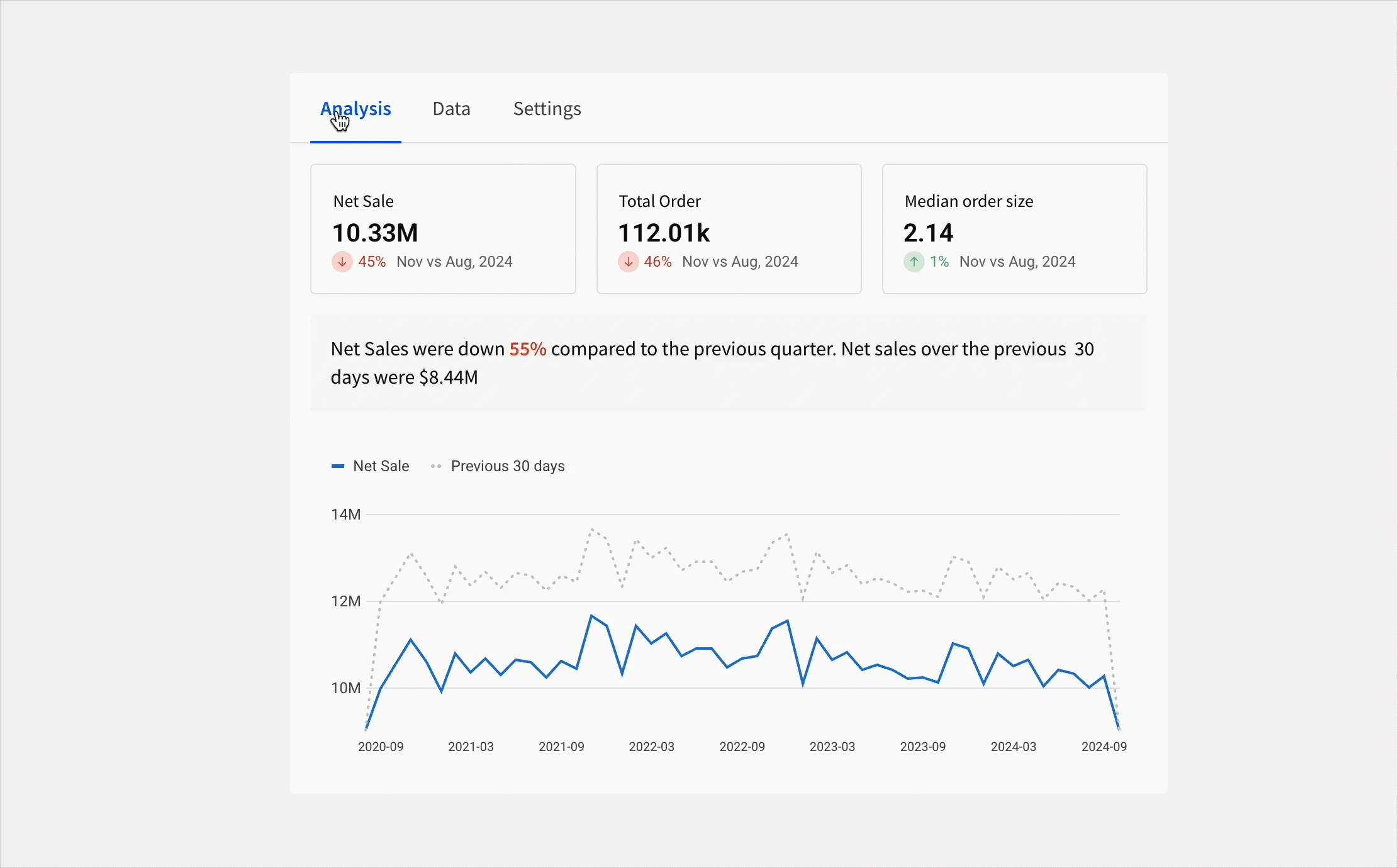

Add a tabbed container to your workbook pages when you want to offer multiple sets of content in the same section of your workbook canvas. A tabbed container works just like a regular container when it comes to organizing workbook elements, visually grouping them together, and allowing you to manage them as a group. In addition, a tabbed container has multiple tabs at the top of the container, which can either be visible or hidden for end users. By placing content on different tabs and configuring logic about which tab should display, you can allow users to experience different views in the same space without scrolling or navigating elsewhere.

Use tabbed containers when you want to:

• Show a chart and its underlying data in the same dashboard space.
• Show different charts based on the number of selected items in a control.
• Show a custom “No data” message for an empty element.
• Create a drill down that changes from one chart type to another.

Limitations

• Hiding individual tabs is not supported. You can show or hide the entire tab bar, but not individual tabs. If you hide the tab bar, the only way to display tabs other than the default tab is through the Select tab action. See Create actions that modify or refresh elements.
• When exporting from a workbook with a tabbed container, the export always renders the first tab, which is labeled as the default tab in the properties tab of the editor panel.
• When you nest containers or tabbed containers, you can only nest four levels deep. If you attempt to place a tabbed container or container inside another layout element that is already nested within three surrounding container or tabbed container elements, Sigma shows a "Cannot nest more than 4 levels of layouts" error.

Prerequisites

• You must be the owner or have Can edit or Can explore permissions on the workbook.

Add a tabbed container to a workbook

In edit or explore mode, follow these steps to add a tabbed container:

1. In the Add element bar, select Layout then select Tabbed containers.

   An empty tabbed container appears. If you selected a container or tabbed container before adding the element, the new tabbed container is nested within that element. Otherwise, the tabbed container appears on the canvas.

💡

To quickly size the container to match the width of other elements already on your canvas, select the element or element you want to match before adding the tabbed container.

The tabbed container appears on your canvas near the elements you selected and matches their width.

Configure a tabbed container

When you first add a tabbed container to a workbook, it contains three empty tabs named Tab 1, Tab 2, and Tab 3.

To customize the configuration of your tabbed container, use the Properties tab of the editor panel:

• To rename your tabs, in the Properties tab, double-click on the default tab names. Or, click More, then click Rename.
• To reorder your tabs, click the drag handle to the left of the tab name in the Properties tab, then drag it to your preferred location in the list.

📘

The first tab in your container is the default tab. The default tab is what displays when a user accesses your workbook in view or explore mode, unless you have configured logic to override this default. To configure specific tabs to open based on conditions or user actions, see Create actions that modify or refresh elements.

When exporting from a workbook with a tabbed container, the export always renders the default tab.

• To duplicate a tab and all of its contents, click More, then click Duplicate.
• To configure different tabs to display based on user actions, configure the Select tab action. See Create actions that modify or refresh elements.

Resize a tabbed container

By default, a tabbed container has a grid width of 12, which you can resize as needed. Drag the edges of a container to resize it.

• You cannot resize a container smaller than the elements inside of it.
• When you resize a container horizontally, the width of the grid spaces inside the container change and the elements inside the container are resized horizontally to fit.
• When you resize a container vertically, the number of vertical grid spaces inside the container changes but elements do not resize automatically.
• All tabs in a tabbed container share the same width and height. This means that if you add an element in one tab that takes up more vertical space than the elements on other tabs, the height of all tabs is affected.

Change the grid column density of a tabbed container (Beta)

🚩

This documentation describes a public beta feature and is under construction. This documentation should not be considered part of our published documentation until this notice, and the corresponding Beta flag on the feature in the Sigma service, are removed. As with any beta feature, the feature discussed below is subject to quick, iterative changes. The latest experience in the Sigma service might differ from the contents of this document.

Beta features are subject to the Beta features disclaimer.

A container has its own grid, similar to the grid on the canvas. By default, a container's grid has 12 horizontal grid spaces, or 12 "columns", which expand and contract to fit the container size. You can change this density in the Properties tab of the editor panel using the Column density setting. Higher density gives you a finer grain of control over element positions in large containers.

• A container with Low column density has 6 grid columns.
• A container with Medium column density has 12 grid columns. This is the default density.
• A container with High column density has 24 grid columns. When dragged to the full width of the canvas, the grid within a container with high column density aligns with the full canvas grid.

Style a tabbed container

In the editor panel, select the Format tab to style your container:

Open the Tab bar style section to style the tab bar:

Remove or delete a tabbed container

When you delete a tabbed container, you also delete all elements inside every tab of the tabbed container. To do so, select the tabbed container, then select More > Delete element. The tabbed container and all elements inside are deleted.
