Area

The Area function calculates the area of a geography polygon, in specified units.

When you apply the Area function to geography points or geography lines, Sigma returns 0.

📘

This function isn't compatible with all data platform connections. To check if your connection supports it, see Supported data platforms and feature compatibility.

Syntax

Area(units, polygon)

The function arguments are:

units
Required
The unit of measurement for the area
Valid values are "square_kilometers", "square_meters", and "square_miles".
polygon
Required
The object for which we calculate the area
Must be in valid Geography polygon format.
To work from known latitude and longitude values, use the MakePoint or MakeLine functions.

Examples

Area("square_kilometers", [Coordinates])
Area("square_meters", [Coordinates])
Area("square_miles", [Coordinates])

The Area function returns the following values for the Coordinates column values that define a polygon, when specifying area in square kilometers, square meters, or square miles:

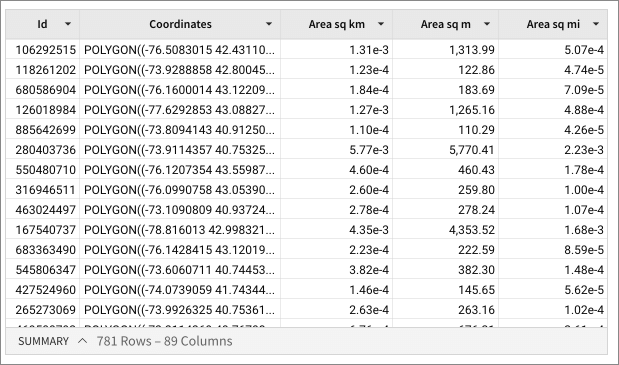

All three examples of the area function are shown in a table for several records worth of coordinates
🚩

On Databricks connections, values might differ slightly from those shown in the examples. This is because Databricks represents earth using the WGS 84 ellipsoid, while other connections assume a perfect sphere.
