Maps

You can create three different types of map in Sigma - region, point, and geography. These allow you to create interactive maps for a variety of use cases.

Use a map when you want to:

• Visualize differences in one or more measures by region.
• Chart locations based on latitude and longitude coordinates.
• Map standard geography data formats, like WKT or GeoJSON.

Create a map

You can create a map in one of two ways:

• In the Add element bar, select Chart, and then select one of Region, Point, or Geography.
• From an existing data element, select Create child element > Chart. In the editor panel, set the Chart type to one of Map - Region, Map - Point, or Map - Geography.

Once created, you can configure the map by adding data to the required fields:

• For Map - Region charts, select Add column... in the Region section of the editor panel, and add a text column. See Map - Region for more information.
• For Map - Point charts, select Add column... in the Latitude and Longitude sections of the editor panel, and add a number column to each. See Map - Point for more information.
• For Map - Geography charts, select Add column... in the Geography section of the editor panel, and add a properly formatted variant column. See Map - Geography for more information.

Map types

Workbooks support three distinct map types: Region, Point and Geography. Choose your map type based on your data and use case.

For example, if you have a dataset of sales orders with a State column, and want to visualize sales by state, you can create a region map that sums the sales for each state and displays the results on a map with a color gradient.

See example visuals and use cases for each map type below:

• Map - Region
• Map - Point
• Map - Geography

Map - Region

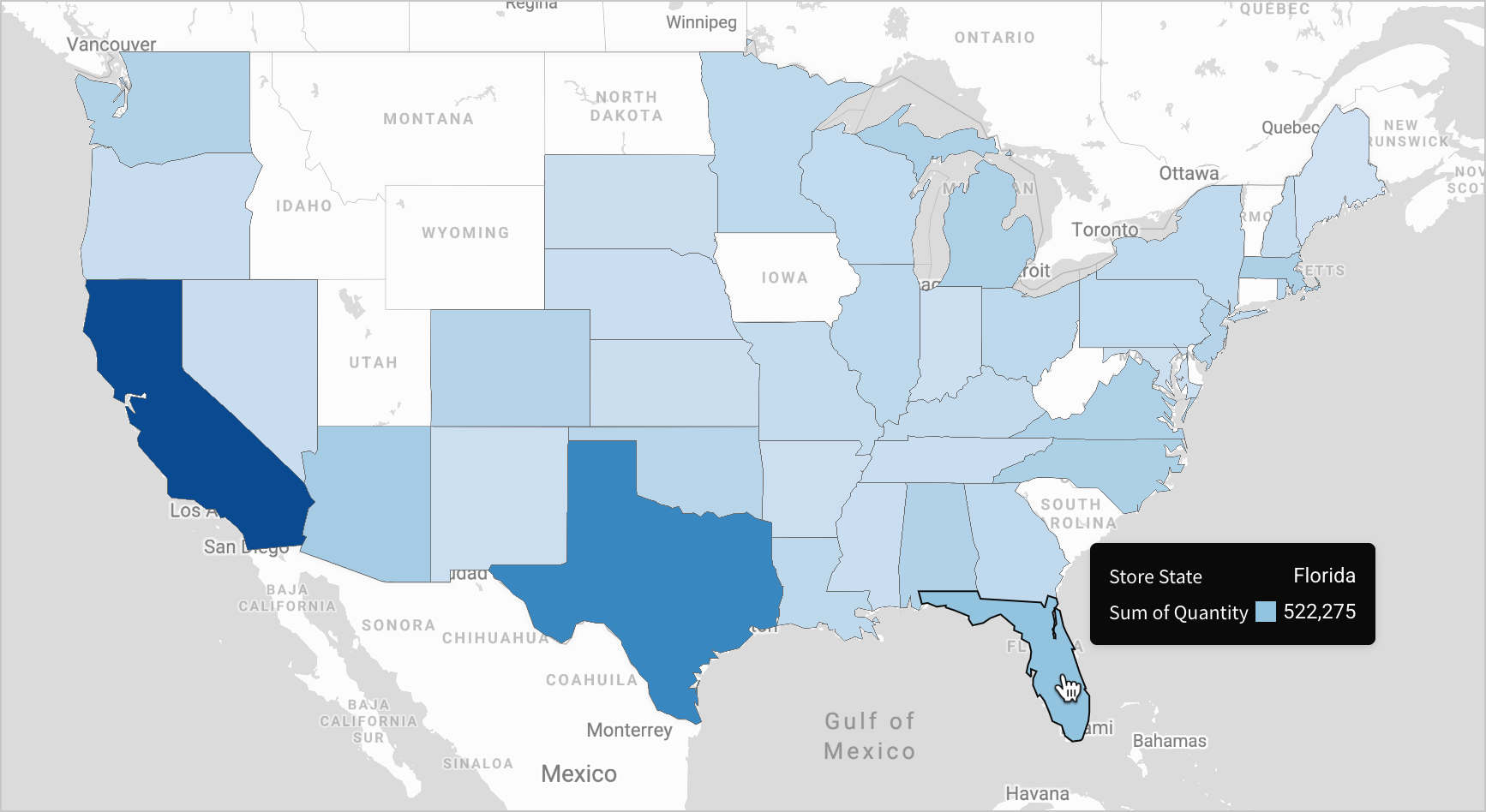

Region maps allow you to visualize one or more measures by region. The example below uses a State column to separate sales records by US state, and color-code the states on the map according to the quantity of sales orders.

Region maps require a single text column in the Region property. Column values must match one of the following region types and be consistent within the column.

You can download a list of valid country names and US county names that Sigma supports for region maps.

📘

Region values are not case sensitive. For example, the value for the state of California can be California, california, CA, Ca, or ca. However, all values in the column should use the same supported identifier and capitalization for data consistency.

Map - Point

Point maps allow you to visualize one or more locations using points on a world map, and optionally use the color and size of the points to indicate how the locations vary. The example below shows airports in the United States, with larger, redder dots indicating airports with a higher average delay for departing flights.

Point maps require a number column for the map's Latitude and Longitude settings.

Map - Geography

In the Map - Geography chart, you can use variant data, like WKT and JSON formats, as well as Sigma's geography data type which allow for more complex geographical data than region or point maps.

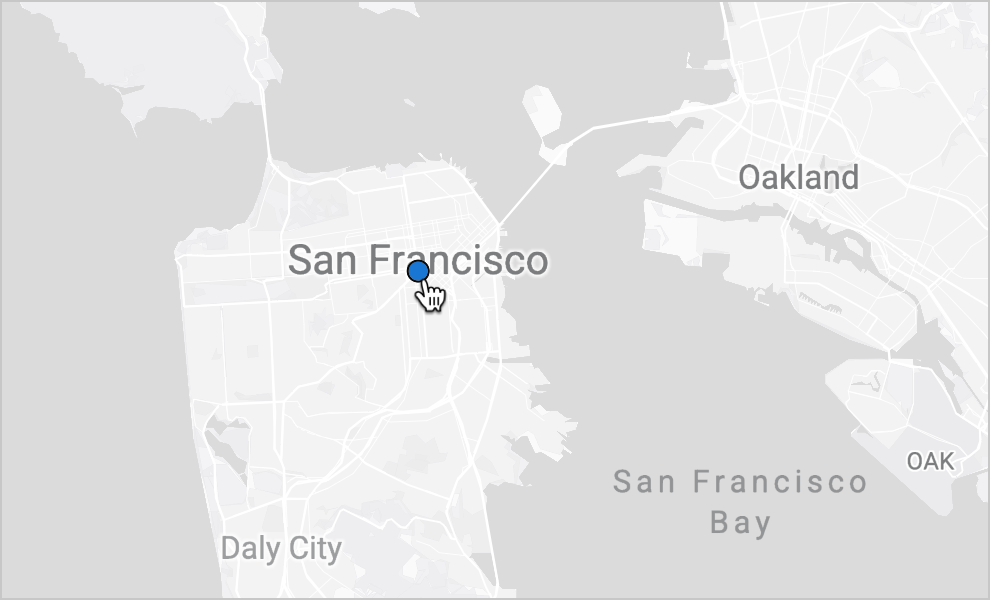

For example, the chart below shows the GeoJSON point {"type": "Feature", "geometry": {"type":"Point","coordinates":[-122.4194,37.7749]}} as a dot on the map.

📘

Sigma's Map - Geography chart supports a geography or variant data column on the map's Geography field. If your WKT or GeoJSON data is stored as a text column, you can convert it using the Geography or Json function. To plot the example above, you can use the calculation Json('{"type": "Feature", "geometry": {"type":"Point","coordinates":[-122.4194,37.7749]}}').
