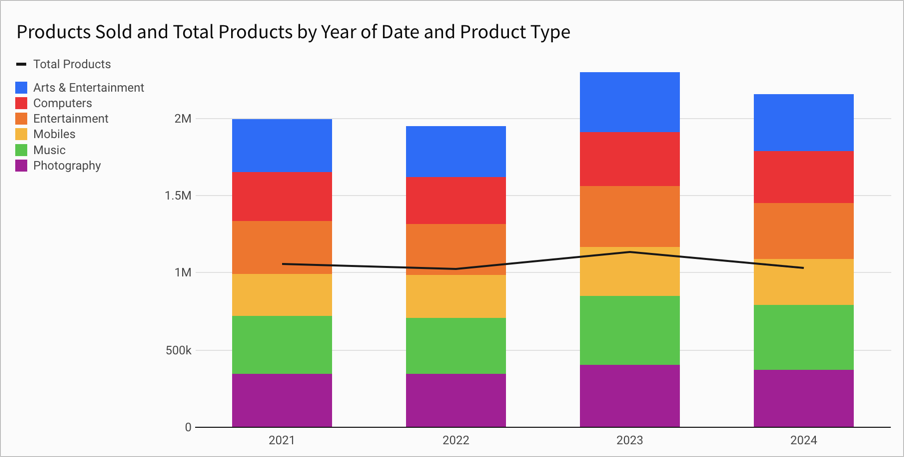

Combo charts are a type of visualization that uses a mixture of chart types. Sigma combo charts support bars, lines, areas and scatter plots.

Summary of Content

Plot a Combo Chart
      Fields
      Marks
Format Options
Change a Column's Shape
Related Resources


Requirements

  • To create a data element, you must have Can Edit access to the individual workbook and be in Edit mode.
  • Many exploratory actions are also supported in Explore mode. Learn more

Plot a Combo Chart

Visualizations can be created via the PAGE ELEMENTS section of your workbook's editor panel or directly from an existing data element

Visualized data will not display on the page canvas until all required plot fields are defined.

Add columns to open fields using either the field's + menu or dragging and dropping the column.

Fields

  • X-AXIS (1 column)
    Data is first grouped by the column on the X-AXIS
  • Y-AXIS (1+ columns)
    Columns added to the visualization’s Y-AXIS are aggregated by default. Aggregation type (e.g. Sum vs Count) is dependent on the original column’s value type.

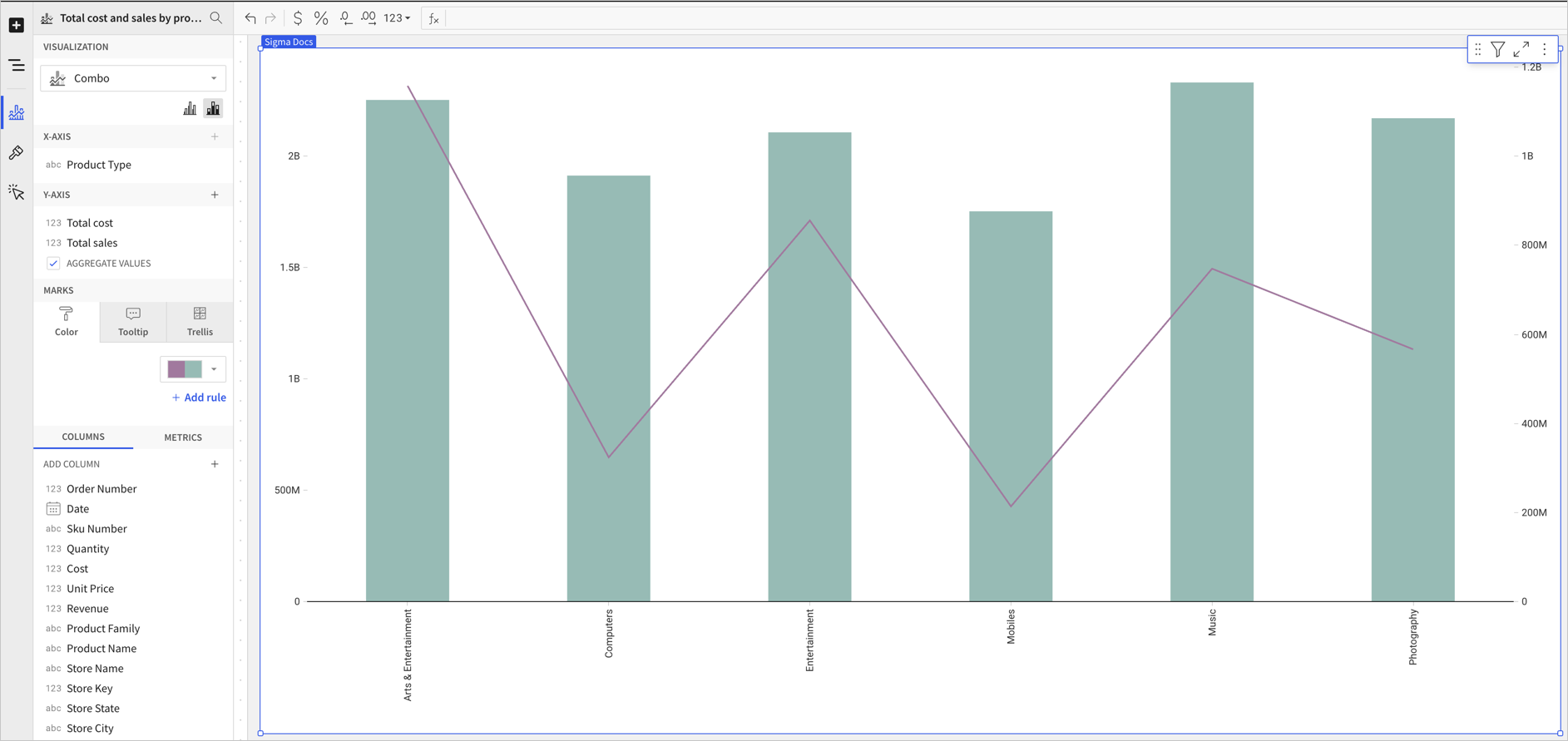

    By default, the first column placed on the y-axis is displayed as a bar chart, and all additional columns are plotted as lines. However, each plotted column's SHAPE can be set to any of four options – bar, line, area, or scatter – from its column menu (see Change a Column's Shape)


Marks

  • COLOR
  • TOOLTIP (1+ columns)

Format Options

To begin editing an visualization’s format options:

Before you start: This action uses the editor panel. If you have not done so already, open the editor panel from either Explore or Edit mode. Learn more

  1. In the editor panel, click the paintbrush (Screen_Shot_2022-02-08_at_5.17.56_PM.png) button.
  2. Select a format option to view and edit its settings.

The following format categories are available for combo charts:

Change a Column's Shape

Column's plotted on a combo chart's y-axis can take one of four shapes: bar, line, area, or scatter. Follow the steps below to change a column's shape.

Before you start: This action uses the editor panel. If you have not done so already, open the editor panel from either Explore or Edit mode. Learn more

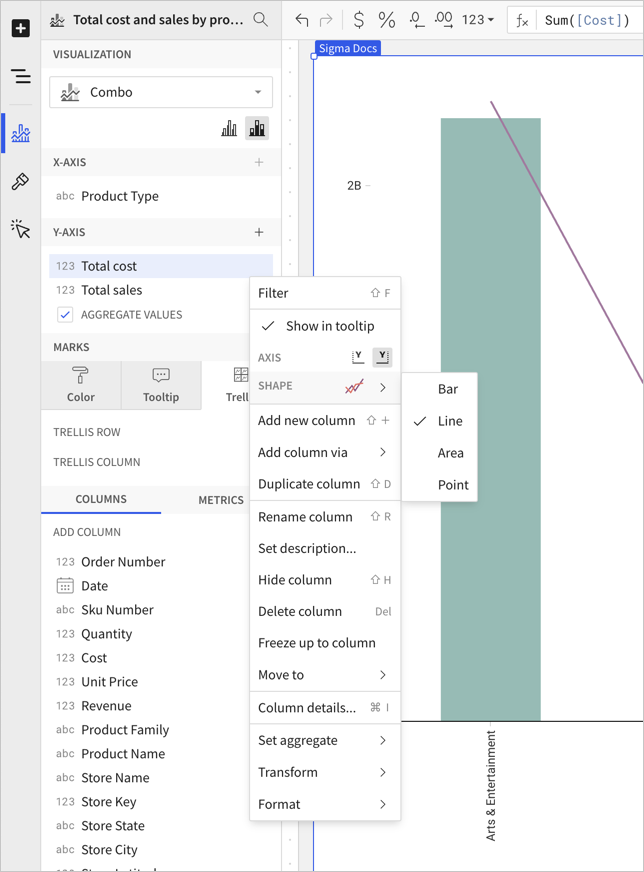

  1. In the editor panel, hover over the column, and click its caret (▼) button.
    This will open the column's menu.
  2. In the SHAPE submenu, choose Bar, Line, Area, or Scatter.



Related Resources

Intro to Building Visualizations
