Join types
Contents
Requirements
- Joins and lookups in workbooks and datasets must use sources from the same connection.
- Lookup join
- Lookup returns all of the rows in the current data and data from the matching rows in the joined data while maintaining the number of rows in the current data. If Sigma finds more than one match for the current data in the joined data, it returns a * in the corresponding row. Lookup functions like a VLOOKUP Excel function.
- See Lookup join.

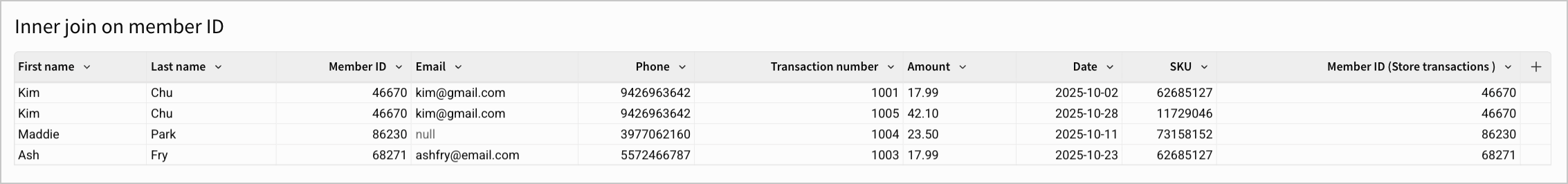

- Inner join
- The inner join returns the rows that exist in both the current data and the joined data. Removes all rows that do not have data in both the current data and joined data.
- See Inner join.

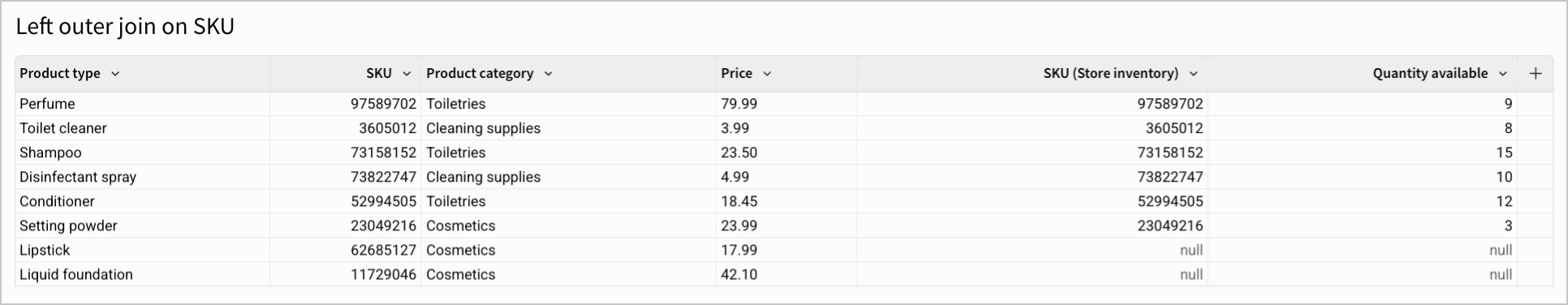

- Left outer join
- The left outer join returns all of the rows in the current data, and all the data from the matching rows in the joined data.
- It adds rows when there is more than one match. This can result in an expanded row count.
- See Left outer join.

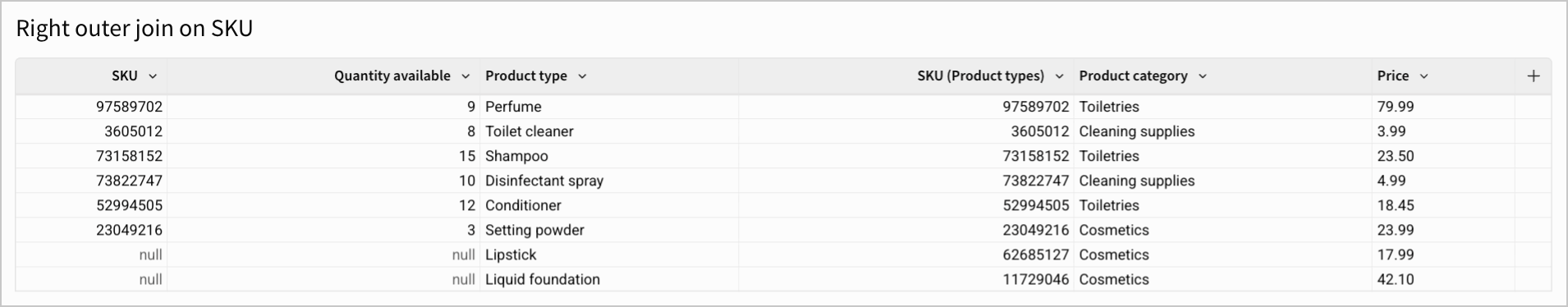

- Right outer join
- The right outer join returns all of the rows from the joined data, and the data from the matching rows in the current data.
- It adds rows when there is more than one match. When the current data has more than one row that matches to joined data, all of the matches rows are retained.
- See Right outer join.

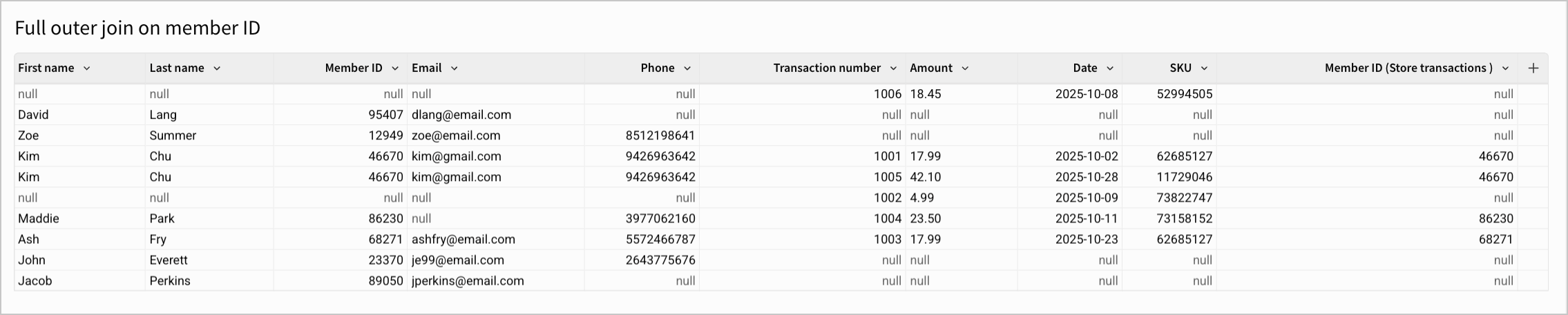

- Full outer join
- A full outer join returns all of the rows from the current data and all of the rows in the joined data, making matches where possible.
- See Full outer join.
